Datacon 2200 evo hS

Innovative Solution for Innovative Products

The Datacon 2200 evo hS die bonder for Multi Module Attach assembles all kinds of technologies on a tried-and-tested platform, enhanced with key features for higher bonding accuracy and lower cost of ownership. Besides unbeaten flexibility and full customization possibilities, this evolutionary machine offers higher accuracy with long-term stability using a new camera system and thermal compensation algorithm, higher speed through a new image processing unit, and improved cleanroom capabilities.

Datacon 2200 evo goes hS!

  • Multi-chip capability
  • Flexibility for customizing
  • Open platform architecture

Key Features

Multi-chip

  • Fully automatic cycle for Multi-chip production
  • Up to 7 Pick & Place tools (optionally 14), 5 eject tools
  • Pressure/time (Musashi®), Auger, Jetter type dispensers available
  • Epoxy stamping option
  • Filled and unfilled epoxy, wide viscosity range


Accuracy

  • New high-speed image processing unit
  • Full alignment & Bad mark search
  • Pre-defined fiducial geometry & customized teaching

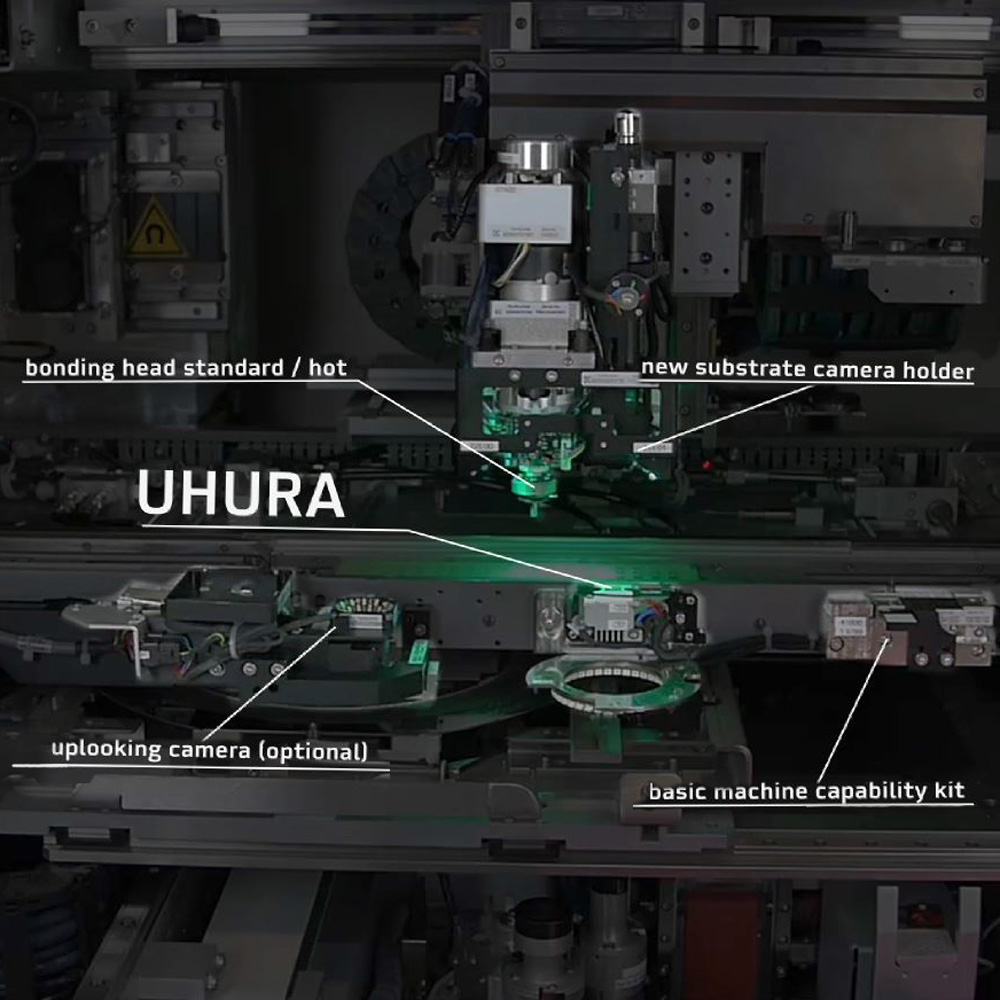

Pick & Place Head

  • Die Attach, Flip Chip and Multi-Chip in one machine
  • Die pick from: wafer, waffle pack, Gel-Pak®, feeder
  • Die place to: substrate, boat, carrier, PCB, leadframe, wafer
  • Hot and cold processes supported: epoxy, soldering, thermo-compression, eutectic

Specifications

Accuracy

X/Y placement accuracy ±7 µm @ 3 sigma
Theta placement accuracy± 0.15° @ 3s



Bond Heads

Standard bond head0° - 360° rotation
Heated bond headoption



Dimensions

Footprint1,160 x 1,225 x 1,800 mm (WxDxH)
Weight1,450 kg



Performance

Uptime > 98%
Yield> 99.95%
Outputup to 12,000 UPH



Wafer

Die sizeDie attach 0.17 - 5 mm
Die thickness0.05 - 2 mm
Wafer size2 - 12" (50 - 300 mm)
Frame size5 - 15" (125 - 375 mm)



Chip trays

Waffle pack / Gel pack2 x 2" and 4 x 4"
JedecOn request



Substrate & Carriers

TypesFR4, ceramic, BGA, flex, boat, lead frame, waffle pack, Gel-Pak®, JEDEC tray, odd-shape substrates
Working range13 x 8" (325 x 200 mm)



Options

HardwareOpen platform architecture for full customization
SoftwareSingle component tracking, CAD download, wafer mapping, substrate mapping, barcode scanner, datamatrix recognition and more
